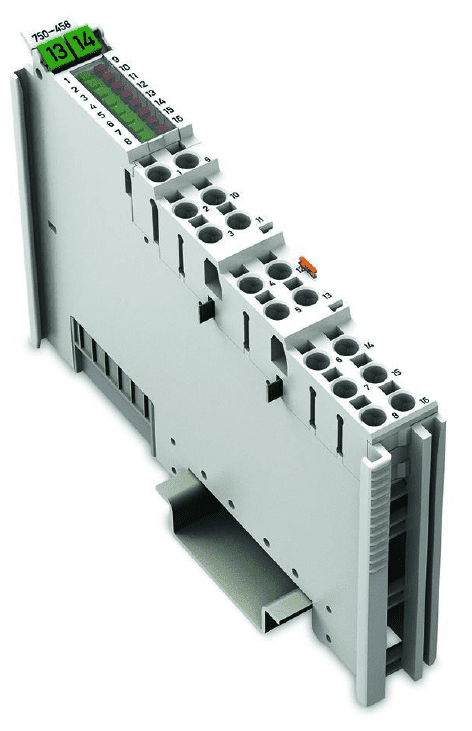

w750-458 - 8× AI for thermocouples
Description
Analog input module for thermocouples.
Specifications
| Number of analog inputs | 8 |
| Total number of channels (module) | 8 |
| Type of signal | Thermocouple, low voltage |
| Transfer time type | 100 ms |
| System supply voltage | 5 V DC; using data clamps |
| Current consumption, system power (5 V) | 100 mA |

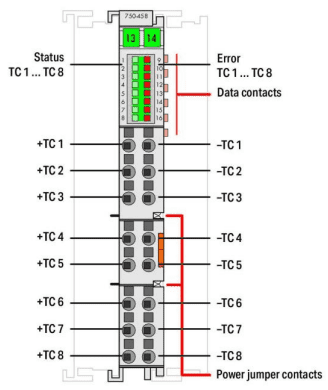

Device connection
LED status indicating the connection of the cells Error LED - lights up in the event of a wire break +TC and -TC - terminals for connecting thermocouples
Settings
