FCR013 - Communicative room temperature controller for heating and cooling panels and VAV damper

Description

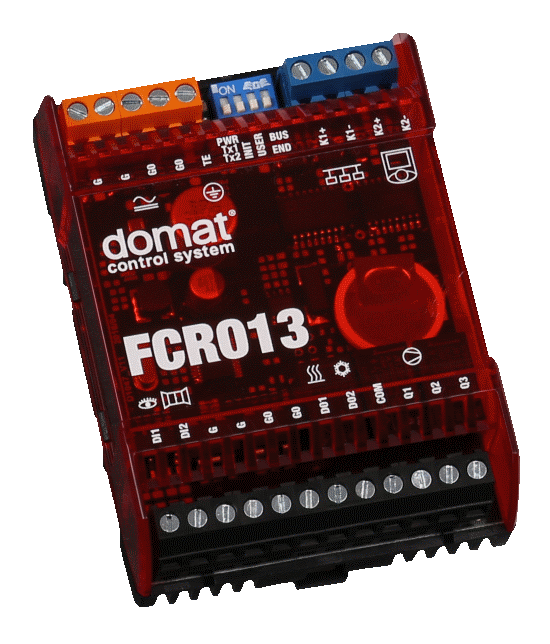

FCR013 is a communicative controller of heating and cooling panels and a VAV (variable air volume) damper. It measures temperature in the room air using a room unit and it may either work autonomously, or be connected to a primary controller (MiniPLC or SoftPLC) or SCADA (RcWare Vision or any other SCADA able to act as Modbus master). As a room unit, UC013 is used.

Inputs

InputST TypeDescription
ActualOutsideTempRrealActual outside temperature
ActualRegModebyteActual controller status:
bit0...comfort / day
bit1...depression / night
bit2... off
ActualTemprealRoom temperature
ActualTempSPCoolrealActual setpoint cooling
ActualTempSPHeatrealActual setpoint heating
DemandCoolboolCooling demand
DemandHeatboolHeating demand
DI1_PresenceboolInput - presence
DI2_WindowboolInput - window contact
DisplaySymbolsRwordDisplayed symbols:
bit0...spanner
bit1...boiler
bit2...alarm bell
bit15...write enable (if the bit is 1, the register will be written; if the bit is 0, the symbol bit is ignored)
DO1boolRelay1.
DO2boolRelay 2.
FCSlaveComStatesintCommunication status of slaves (if configured as Master - Slave):
0...OK
1 and higher: which FC015 is the first slave with comm error
ManControlRbyteManual control (1: manual control enabled):
bit0...VAV
bit1...heating output
bit2... cooling output
bit3...change-over signal (0 - heating mode, 1 - cooling mode)
ManCoolDigOutRusintManual cooling digital output DO2 settings in %,  0...100%.
ManCoolOutRsintManual cooling output settings in %,  0...100%.
ManHeatDigOutRusintManual heating digital output DO1 settings in %,  0...100%.
ManHeatOutRsintManual heating output settings in %,  0...100%.
ManFanSpeedRsintManual fan speed output settings in %,  0...100%.
PidOutCoolsintCooling valve output in %,  0...100%.
PidOutHeatsintHeating valve output in %,  0...100%.
PidFanSpeedsintFan speed according to PID controller
SetTempCorrRrealRelative temperature correction (knob)
UcComStatesintCommunication status - room unit:
0...OK
1...timeout
2...MB exception
3...MB error

Outputs

OutputST TypeDescription
ActualOutsiteTempWrealActual outside temperature
DisplaySymbolsWwordDisplayed symbols:
bit0...spanner
bit1...boiler
bit2...alarm bell
bit15...write enable (if the bit is 1, the register will be written; if the bit is 0, the symbol bit is ignored)
ManControlWbyteManual control (1: manual control enabled):
bit0...VAV
bit1...heating output
bit2... cooling output
bit3...DO1
bit4...DO2
bit5...change-over signal (0 - heating mode, 1 - cooling mode)
ManCoolDigOutWusintManual cooling digital output DO2 settings in %,  0...100%.
ManCoolOutWsintManual cooling output settings in %,  0...100%
ManHeatDigOutWusintManual heating digital output DO1 settings in %,  0...100%.
ManHeatOutWsintManual heating output settings in %,  0...100%.
ManFanSpeedWsintManual fan speed settings in %, 0...100%.
SetTempCorrWrealRelative temperature correction
