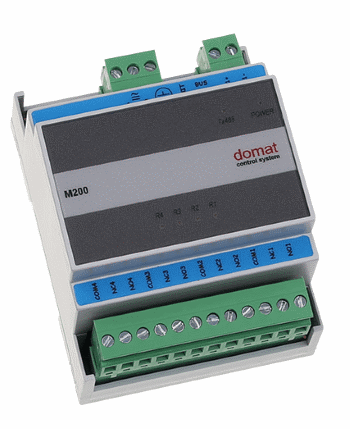

The M200 digital output module is a microprocessor-controlled, communicative 4 binary outputs module. The module uses a RS485 bus for communication, and can be easily integrated in a variety of supervision and control systems.
| DO1...DO4 | bool | Relay control, DO1...DO4. |
| M200 | NoComm timeout | Time of "no communication" for emergency fallback, 0 to 255s. |
| DO1...DO4 | NoComm enabled | Enable emergency output fallback at "NoComm timeout". |
| DO1...DO4 | NoComm status | Required output states at emergency fallback |
| DO1...DO4 | Enabled at startup
| Enable startup output settings (until first communication) |
| DO1...DO4 | Startup status | Required startup output status (must be enabled above) |
Device configuration description
