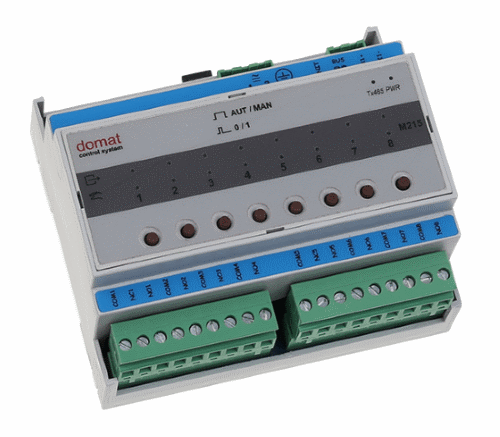

M215 - 8 digital outputs with manual intervention
Description
The M215 digital output module is a microprocessor-controlled, communicative 8 binary outputs module with manual intervention. The module uses a RS485 bus with Modbus RTU for communication, and can be easily integrated in a variety of supervision and control systems. The manual intervention status is read-only.
Each output may be manually overridden into ON or OFF position. Long push (> 1.5 s) of the corresponding button brings the output into manual mode, which is signalled by the yellow LED (hand symbol). Short pushes (< 1 s) toggle between ON and OFF states. The status is signalled by the green LED (digital output symbol). Another long push brings the output into automatic mode again and the output is controlled by the bus commands. The manual mode and status are kept in EEPROM and restore after power up.
Inputs
| Input | ST Type | Description |
|---|---|---|
| Manual1...Manual8 | bool | Manual/automatic mode 0 - the output is on automatic 1 - the output is on manual |
| ManualValue1...ManualValue8 | bool | Manually set value: 0 - Off 1 - On |
Outputs
| Output | ST Type | Description |
|---|---|---|
| DO1...DO8 | bool | Relay status, DO1...DO8. |
Device configuration - commissioning
| I/O | Parameter name | Description |
|---|---|---|
| M215 | NoComm timeout | Time of "no communication" for emergency fallback, 0 to 255s. |
| DO1...DO8 | NoComm enabled | Enable emergency output fallback at "NoComm timeout". |
| DO1...DO8 | NoComm status | Required output states at emergency fallback |
| DO1...DO8 | Enabled at startup | Enable startup output settings (until first communication) |
| DO1...DO8 | Startup status | Required startup output status (must be enabled above) |
