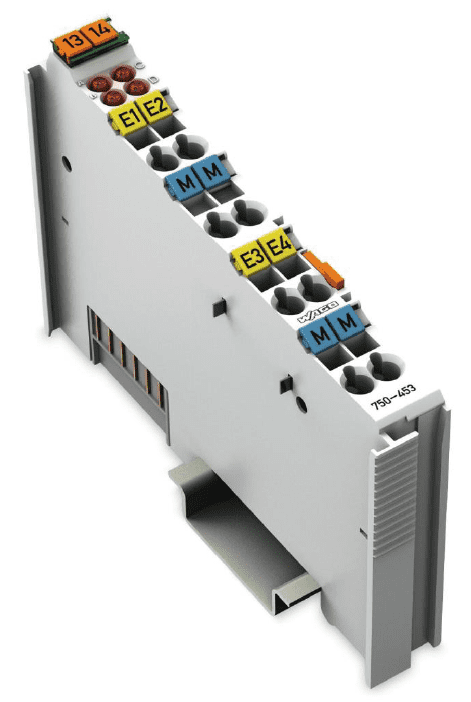

w750-453 - 4× AI for current 0...20 mA
Description
4 channel analog current input module, 0...20 mA.
Specifications
| Number of analog inputs | 4 |
| Total number of channels (module) | 4 |
| Type of signal | DC, 0...20 mA |
| Input voltage max. | 32 V |
| Distinction | 12 Bit |
| Transfer time typ. | 10 ms |
| System supply voltage | 5 V DC; via data contacts |
| Current consumption, system power (5 V) | 65 mA |
| Current capacity of power contacts | 10 A |

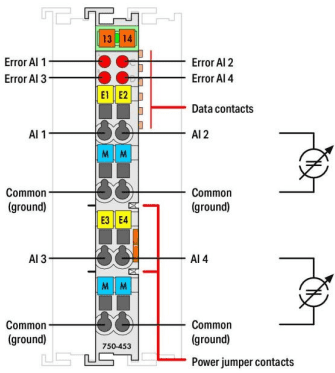

Device connection
4 LEDs for error indication AI terminals for supplying the measured current
Settings
